Crafts & technique features:

Product synopsis:

The seat is designed and developed by the principle of ergonomics, and the seat feels comfortable. The seat cushion is made of lining board, foam and leather bag. The backing board and the seat lining board are customized with high-quality environmental protection plates. The internal wood structure is made of dried and planed larch wood, which does not deform or crack. The internal filling material of the soft core is polyurethane high resilience sponge. The seat base is welded with high-quality steel and processed by sandblasting, rust removal and electrostatic spraying to ensure that the seat is firm and solid.

Specifications (mm):

Trial location: Cinema
Telescopic mode: back seat linkage electric telescopic adjustment, back seat linkage manual control adjustment, completely fixed
Telescopic frame structure: high strength integrated linkage frame
Fabric selection: leather (first layer of cowhide), imitation leather (leather), microfiber leather, cloth
Optional accessories: LED key light indicator with USB charging function inkjet embroidery LOGO rotary table top
Photo [Tip] The color of the picture such as the cooling and heating cup is as close to the real thing as possible, but because of the different factors such as the shooting light and the pixel and the display resolution, the overall effect will have a certain color difference. See the attached photo for details
Wire frame size reference (for reference only) : See the attached table for details
Detailed introduction:
1. Designed and developed according to the principle of body function, the seat feel is more comfortable, and the research and design is carried out according to the international standard requirements to ensure comfort and high-end enjoyment.
2, the adjustment range of the back of the chair is 103º-135°, the adjustment range of the front foot board is 0º-80º, the inside of the armrest is equipped with an adjustment button, (the keyboard is small and delicate, the surface is smooth without installation and construction leakage) control the foot mat and the back linkage open and put away, easy to operate. The Angle can be adjusted arbitrarily and fixed at a certain Angle to meet the needs of customers.
3, armrest box using high quality environmental protection board, internal wooden structure using larch wood, after multiple processes, drying, anti-mold treatment, insecticide, disinfection, water content and other indicators to meet the national standard, attached 10mm thick high-strength qualitative sponge, to meet customer requirements, armrest interior inlaid for brushed silver cup holder.
4, the cushion skeleton is welded with high-quality steel, after sandblasting, rust removal, electrostatic spraying treatment, the internal filling of the cushion is polyurethane high resilience sponge, and S-type spring and rubber elastic pull belt are connected to ensure the comfort and resilience of the cushion.
5, the backrest skeleton adopts high-quality environmental protection board for custom processing, the internal wooden structure uses larch wood, after multiple processes, drying, anti-mold treatment, insecticide, disinfection, water content and other indicators to meet the national standard, the internal filling material is high resilience filled cotton, and rubber elastic strip is connected to ensure that the lean is more comfortable.
6. The internal skeleton of the electric retractable seat is a linkage skeleton. When the seat is moving, the backrest and the human back have no relative displacement to ensure the overall comfort of the customer.
7, the motor adopts high-quality performance motor to ensure the stability of expansion and contraction, and has reached the continuous stepless stable movement of the seat, the use of voltage 220V50HZ, the output voltage is DC24V, the power is 55W, the maximum load is 6000N, the speed is 30mm/s.
8, according to customer requirements can be installed LED key light indicator (white) and USB charging function combination function, to provide customers with more intimate service.
9, one-button reset function (optional), you can freely adjust the Angle when stretching, when recovering, you can automatically recover to the original state with one key, no need to wait.
10, wireless remote control function (optional), you can control all the electric function sofa within 150 meters through the wireless terminal, remote wireless control, one button easily return the hall seat, no need to wait.
11, gravity rebound system (optional), the seat cushion sensor is placed in the sofa seat, when sitting on the sofa seat cushion when the seat cushion sensor is activated, then press the manual switch can normally control the sofa stretching and shrinking action. When leaving the sofa, the sofa will automatically shrink after about 1 second, and if you sit on the sofa again during the automatic shrinkage process, the sofa will immediately stop running. When leaving the sofa, press any button of the manual switch can not control the movement of the sofa.
12, this type of seat can realize the combined installation of shared armrests, while the electric retractable seat is expanded, the armrests remain motionless (landing).
13, Special remarks: The product can be customized according to the actual situation of the customer's theater venue (in general, only the width of the armrest is changed, and the width of the cushion is unchanged).

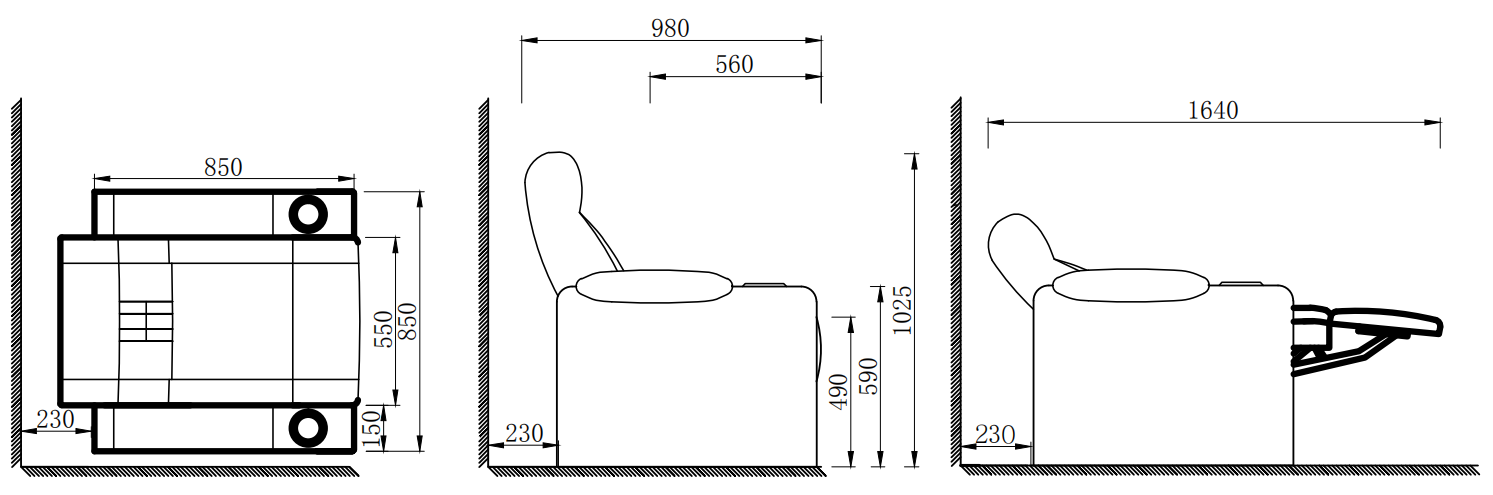

Dimension drawing

Product size can be customized according to customer needs

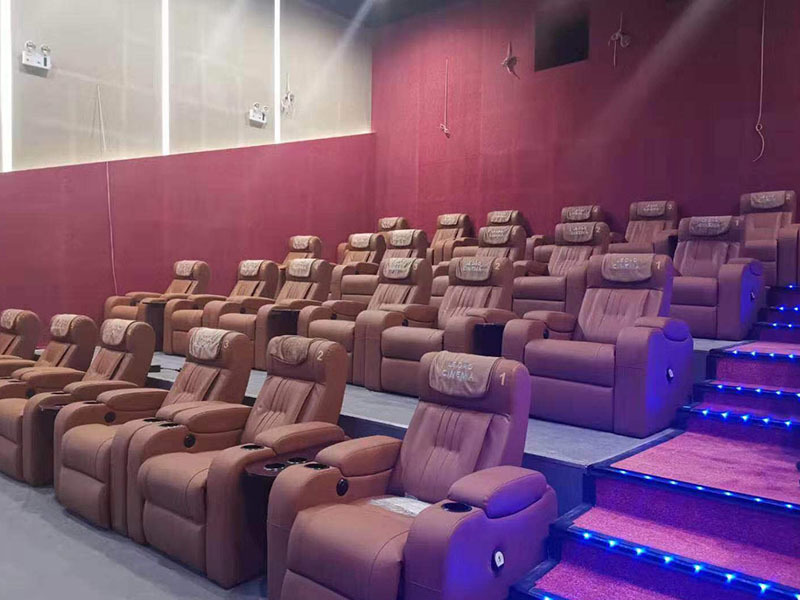

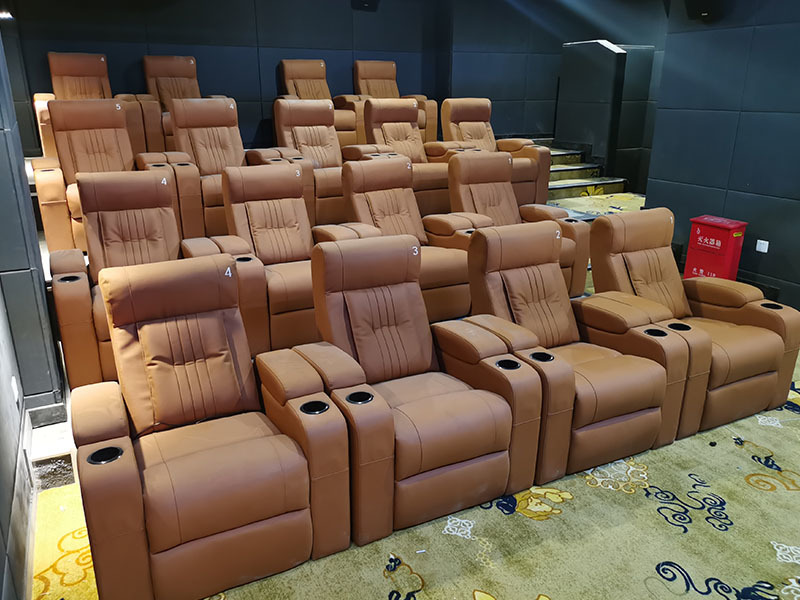

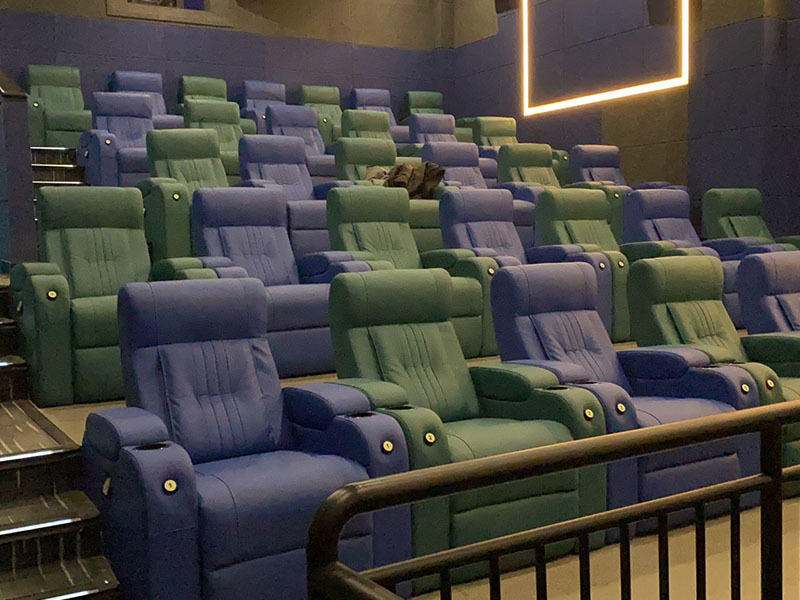

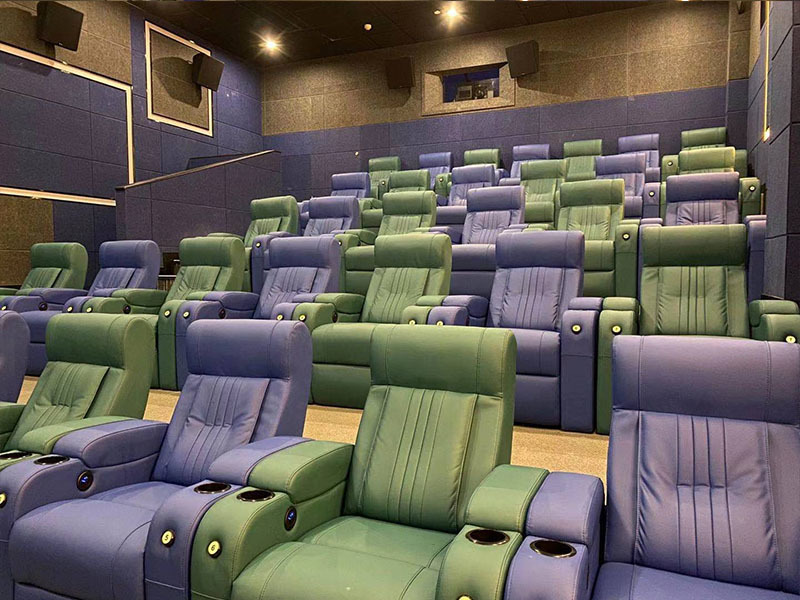

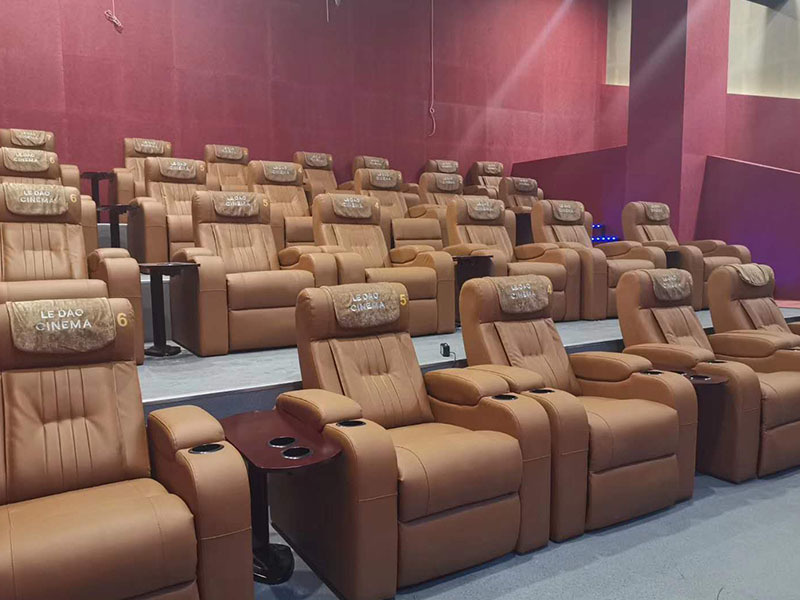

Case
