Dimension drawing

Main technical parameters

Telescopic mode: back seat linkage electric telescopic adjustment
Telescopic frame structure: high strength integrated linkage frame
Detailed introduction:
Designed and developed according to the principle of human function, the seat feels more comfortable, according to the international standard requirements for research and development design, to ensure comfort, high-end enjoyment.
The adjustment range of the back of the chair is 103º-135°, the adjustment range of the front footrestle is 0º-80º, the adjustment button is provided on the inside of the armrest, (the keyboard is small and delicate, the surface is smooth without installation and construction leakage), the control of the foot mat and the back are linked to open and put away, easy to operate. The Angle can be adjusted arbitrarily and fixed at a certain Angle to meet the needs of customers.
Armrest box after multi-process treatment, drying, anti-mold treatment, insecticide, disinfection, moisture content and other indicators to meet the national standard, attached 10mm thick high-strength qualitative sponge, surface fabric style and color can be customized to meet customer requirements, armrest interior inlaid for black plastic cup holder.
The cushion frame is welded with high-quality steel. After sandblasting, rust removal and electrostatic spraying, the filling material inside the cushion is polyurethane high resilience shaping sponge, and the S-type spring and rubber elastic pull belt are uniformly connected to ensure the comfort and resilience of the cushion.
The backrest skeleton is made of high-quality wood for custom processing, after multiple processes, drying, anti-mold treatment, insecticide, disinfection, etc., the moisture content and other indicators meet the national standard. The internal filling is polyurethane high resilience shaping sponge, and the rubber elastic pull belt is connected to ensure more comfortable leaning.
The internal skeleton of the electric telescopic seat is a linkage skeleton. When the seat is moving, the backrest and the human back have no relative displacement to ensure the overall comfort of the customer. The surface of the iron linkage skeleton is electrostatic sprayed after phosphating anti-rust treatment, and the anti-corrosion and anti-impact performance is excellent.
The motor adopts high-quality performance motor to ensure the stability of expansion and contraction, and has reached the continuous stepless and stable movement of the seat. The use voltage is 220V50HZ, the output voltage is DC24V, the power is 55W, the maximum load is 6000N, and the speed is 30mm/s.
According to customer requirements, LED key light indicator (white light) and USB charging function can be installed to provide customers with more intimate service.
This type of seat can realize the combined installation of shared armrests, and the armrests remain stationary (on the ground) when the electric retractable seat is deployed.
Special Remarks: The product can be customized according to the actual situation of the customer's theater venue (in general, only the width of the armrest is changed, and the width of the seat cushion is unchanged).

Introduction to fixed seat and movable back sofa

Trial location: Cinema
Telescopic mode: fixed seat, gas spring type movable back
Fabric selection: leather (first layer of cowhide), imitation leather (leather), microfiber leather
Optional accessory: airbrushed embroidery LOGO
Photo [Tip] The color of the picture has been as close to the real thing as possible, but because of the different factors such as shooting light and pixel and display resolution, the overall effect will have a certain color difference. See the attached photo for details
Wire frame size reference (for reference only) : See the attached table for details
Detailed introduction:
1. Designed and developed according to the principle of body function, the seat feel is more comfortable, and the research and design is carried out according to the international standard requirements to ensure comfort and high-end enjoyment.
2, armrest box after multi-process treatment, drying, anti-mold treatment, insecticide, disinfection, moisture content and other indicators to meet the national standard, attached 10mm thick high-strength qualitative sponge, surface fabric style and color can be customized to meet customer requirements, armrest inlaid for the drawing silver cup holder.
3. The cushion skeleton is welded with high-quality steel. After sandblasting, rust removal and electrostatic spraying, the filling material inside the cushion is polyurethane high resilience shaping sponge, and the S-type spring and rubber elastic pull belt are connected to ensure the comfort and resilience of the cushion.
4. The backrest skeleton is customized with high-quality wood, which has been processed through multiple processes, such as drying, anti-mold treatment, insecticide, disinfection, etc., and the moisture content and other indicators have reached the national standard. The internal filling material is polyurethane high resilience shaped sponge, and the rubber elastic pull belt is connected to ensure that the leaning is more comfortable.
5, backrest built-in gas spring, backrest can be moved before and after a certain range. To achieve different row spacing requirements. The surface of the iron movable skeleton is coated with electrostatic spray after phosphating anti-rust treatment, which has excellent anti-corrosion and impact resistance. When the backrest is moving, there is no relative displacement between the backrest and the human back to ensure the overall comfort of customers.
6, Special remarks: The product can be customized according to the actual situation of the customer's theater venue (generally only change the width of the armrest, the seat cushion width is unchanged).

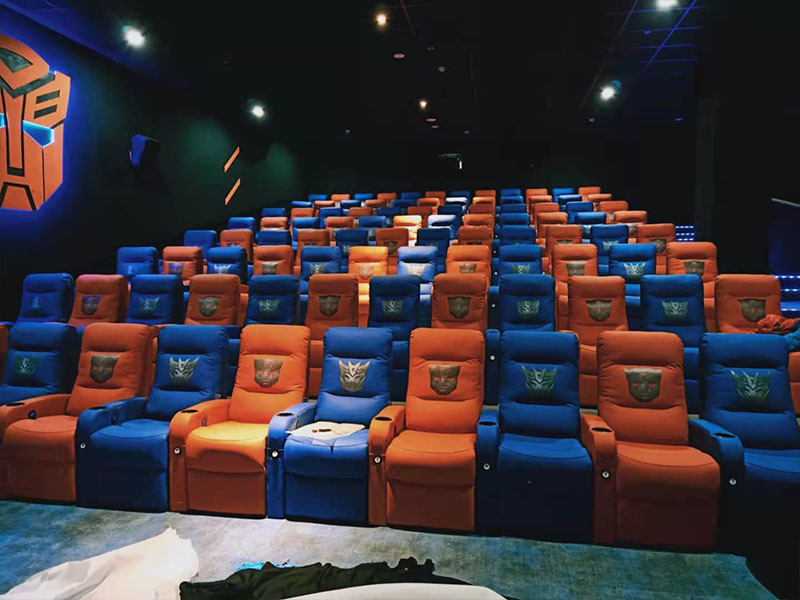

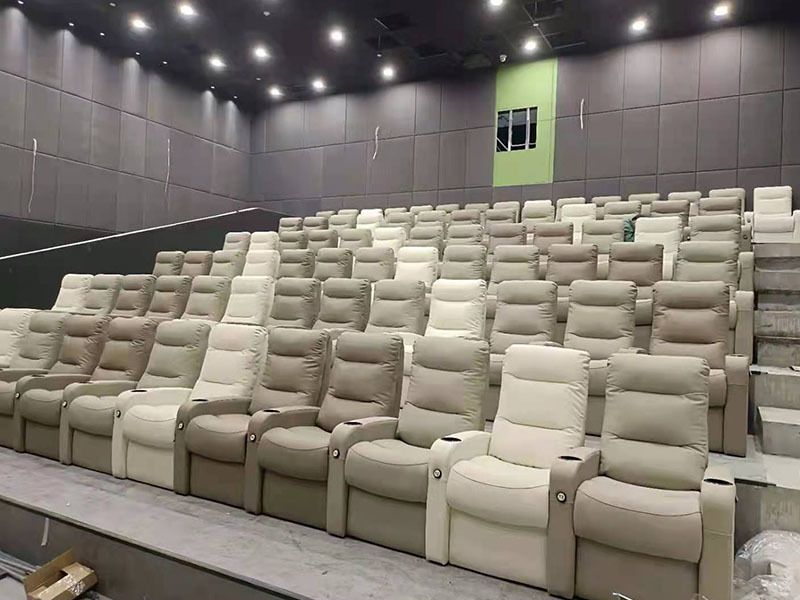

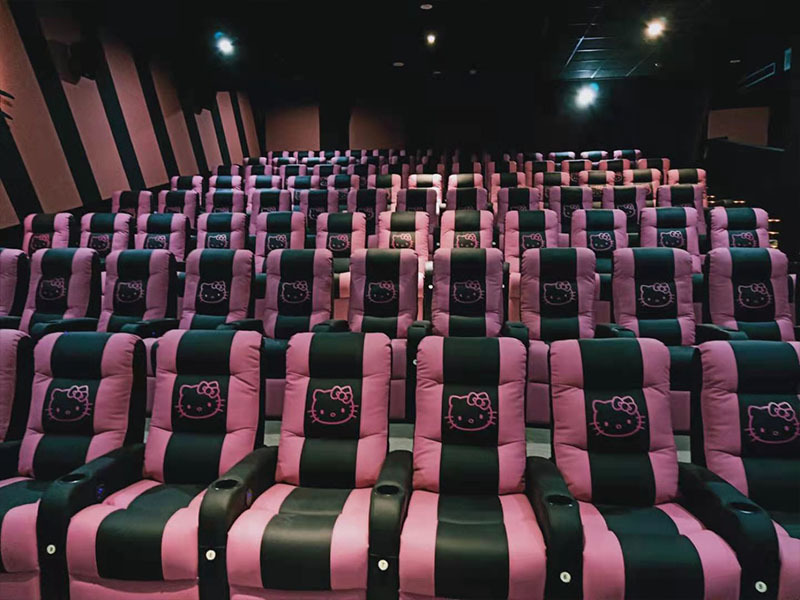

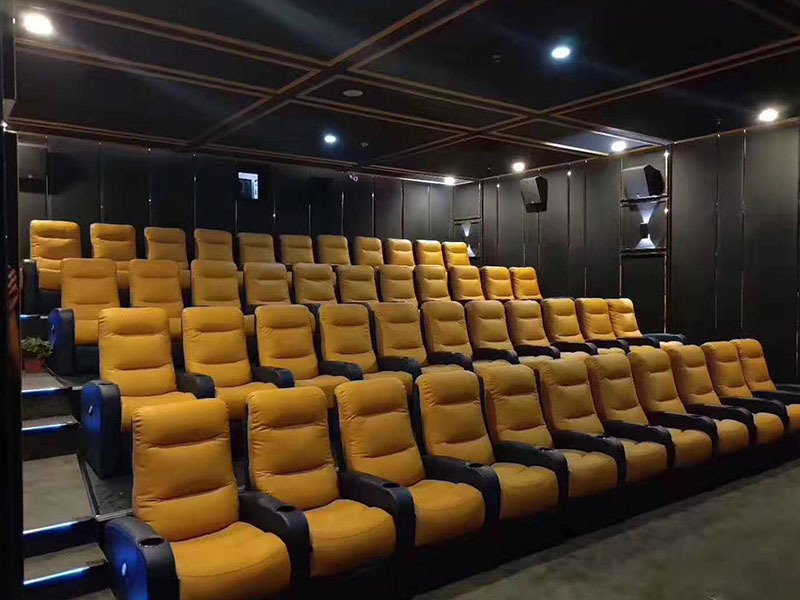

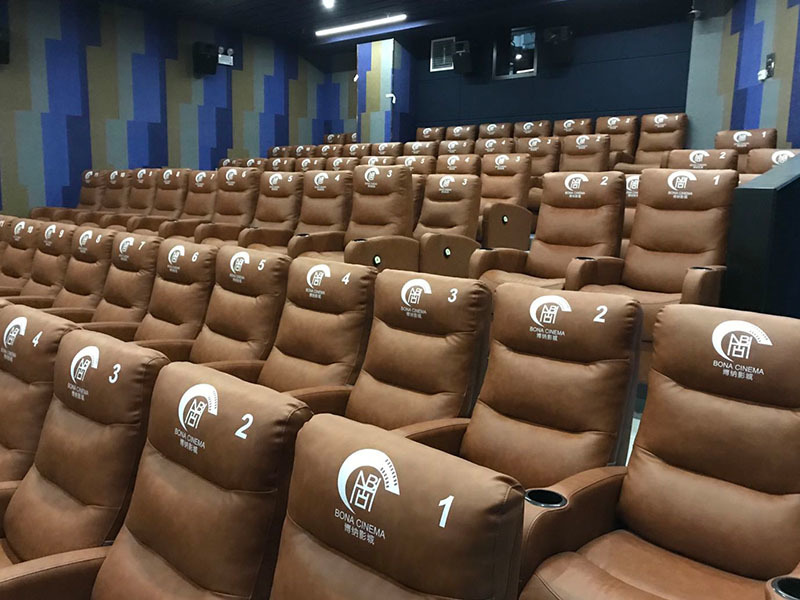

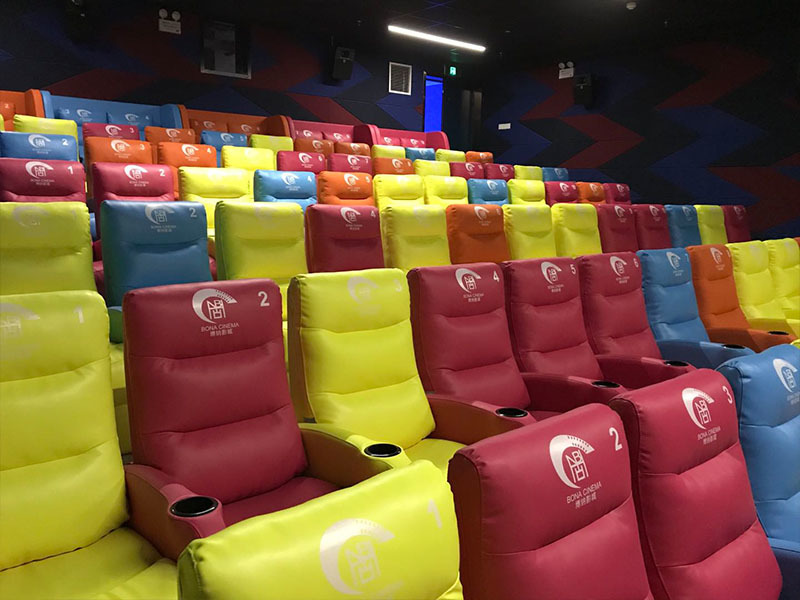

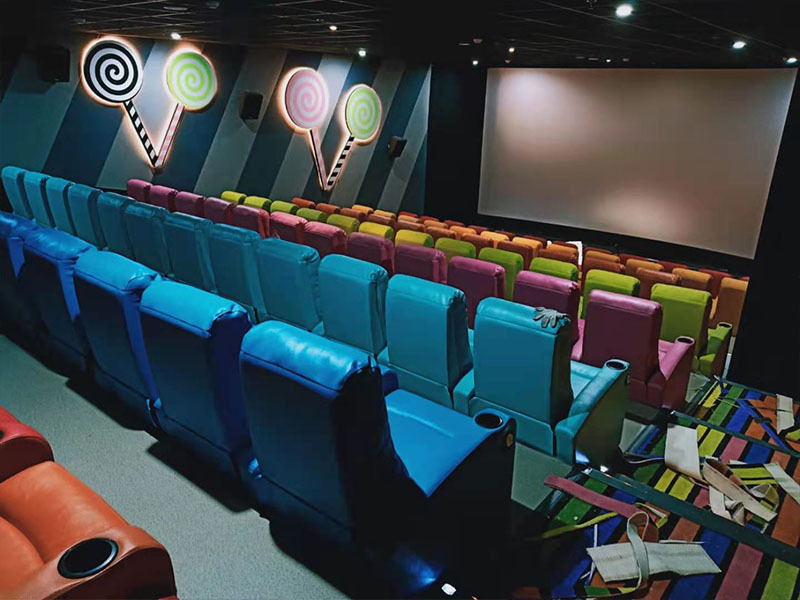

Case
